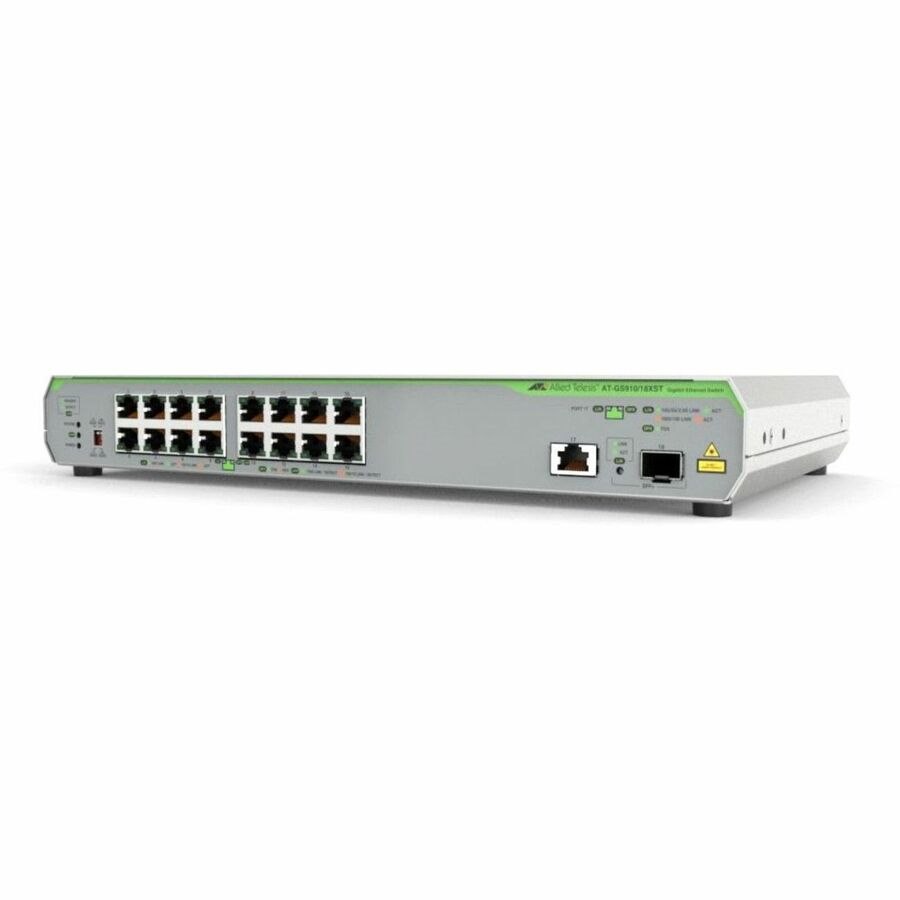

Gigabit Ethernet Unmanaged Switches with 10 Gigabit Uplinks
The Allied Telesis GS910/XST Series unmanaged switches offer flexible deployment with both copper and fiber 10 Gigabit uplinks. Ideal for server and storage connectivity, or for supporting high-bandwidth applications with Gigabit to the desktop, the GS910/XST Series enables high-performing small to medium business (SMB) networks
Overview
The GS910/XST Series unmanaged switch effortlessly supports modern network applications, and provides a high value solution with simple plugand-play installation.
The GS910/XST Series feature 8, 16 or 24 x 10M/100M/1G ports with 1 x 100M/1/2.5/5/10G Multi-Gigabit copper uplink port and 1x 1/10 Gigabit SFP+ uplink port.
High Flexibility
As well as the Gigabit access ports, the GS910/XST Series offer flexible deployment with both copper and fiber uplink options running at up to 10Gbps.
To support legacy network cabling, the copper uplink can run at 2.5G and 5G Multi-Gigabit speeds to maximize both performance and efficient use of building infrastructure.
Loop Protection
The GS910/XST Series provide network loop detection by periodically sending Loop Detection Frames (LDF). If a loop is detected, the switch will automatically block the offending port, to stop broadcast storms from affecting network performance and disrupting user access to online resources and applications. Once the loop is resolved, the port is unblocked.
Energy Reduction
The GS910/XST Series switches are eco-friendly, supporting IEEE 802.3az Energy Efficiency Ethernet (EEE).
When EEE is enabled, power consumption is reduced on ports with low activity. Not only does this help the planet by reducing the carbon footprint of each switch, it also lowers the Total Cost of Ownership (TCO) to the user, as the device costs less to run, and features improved reliability.
DIP Switches
The GS910/XST Series have a set of DIP switches on the front panel, which simplify configuration by allowing users to easily enable or disable features such as Loop Guard and Energy Efficient Ethernet.
Simple Deployment
The GS910/XST Series switches are fanless, providing silent operation suitable for use in open work areas. A robust steel chassis guarantees high endurance, and simple plug-and-play installation ensures easy deployment.
- General Information
- Manufacturer
- Allied Telesis, Inc
- Manufacturer Website Address
- http://www.alliedtelesis.com
- Brand Name
- Allied Telesis
- Product Line
- CentreCOM
- Product Series
- GS910/XST
- Product Type
- Ethernet Switch
- Technical Information
- Features
- Plug and Play
- Fanless
- Interfaces/Ports
- Total Number of Network Ports
- 17
- Uplink Port
- Yes
- Modular
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 16 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port
- 1 x 100M/1/2.5/5/10 Gigabit Ethernet Network Port
- 1 x 1/10 Gigabit Ethernet SFP/SFP+ Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 5 Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 10GBase-T
- 10GBase-X
- Maximum Data Transfer Rate
- 1.25 GB/s
- I/O Expansions
- Total Number of Expansion Slots
- 1.0
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 1
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3az
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3ae
- IEEE 802.3an
- IEEE 802.3bz
- Management & Protocols
- Manageable
- No
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- Number of Power Supplies Installed
- 1
- Physical Characteristics
- Form Factor
- Wall Mountable
- Desktop
- Rack-mountable
- Compact
- Height
- 44 mm
- Width
- 341 mm
- Depth
- 210 mm
- Weight (Approximate)
- 3.60 kg
- Miscellaneous
- Package Contents
- CentreCOM GS910/18XST Ethernet Switch
- 40 AU power cord
- Application/Usage
- Business
- Network
- Server
- Certifications & Standards
- FCC part15 Subpart B Class A
- ICES-003:2016, Issue 6 Class A
- EN55032:2012/AC:2013 Class A
- CISPR 32:2012 Class A
- RCM AS/NZS CISPR 32:2013 Class A
- EN 61000-3-2
- EN 61000-3-3
- EMIS:
- EN 55024:2010
- EN 55035:2017
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- China Restriction of Hazardous Substances (China RoHS)
