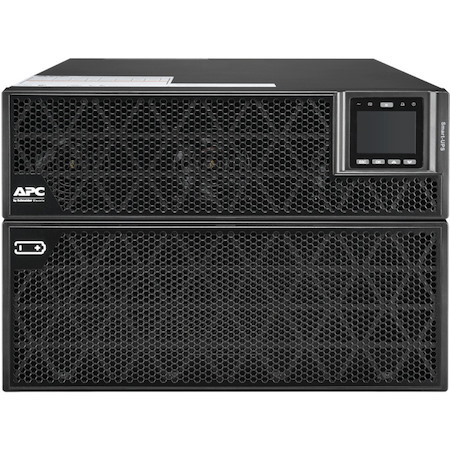

APC by Schneider Electric Smart-UPS RT 15kVA 230V

  • Part: 1247946
$28,534.00

Availability

Out of Stock

High density, double-conversion on-line power protection with scalable runtime

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

  • General Information
    • Manufacturer
    • Schneider Electric SA
    • Manufacturer Website Address
    • http://www.schneider-electric.com
    • Brand Name
    • APC by Schneider Electric
    • Product Line
    • Smart-UPS
    • Product Series
    • RT
    • Product Type
    • Double Conversion Online UPS

  • Technical Information
    • Plug/Connector Type
    • Hard Wire 5-wire (3P + N + E)
    • Transfer Time
    • 0 ns
    • Overload Protection
    • Yes
    • Application/Usage
    • IT Equipment
    • Network
    • Industry
    • Server
    • Voice/Data Network
    • Medical
    • Business
    • Critical System
  • Power Description
    • Load Capacity (VA)
    • 15 kVA
    • Input Voltage
    • 230 V AC
    • Input Voltage Range
    • 160 V AC - 285 V AC
    • Output Voltage
    • 230 V AC
    • 380 V AC
    • 400 V AC
    • 415 V AC
    • Input Frequency
    • 70 Hz
    • Output Frequency
    • 60 Hz
    • Waveform Type
    • Pure Sine Wave
  • Management
    • Alarm
    • On Battery
    • Low Battery
    • Overload
  • Controls/Indicators
    • Status Indicators
    • LED Status Indicators:

      • Quickly Understand Unit
      • Power Status With Visual Indicators.
  • Interfaces/Ports
    • Serial Port
    • Yes
    • USB (HID Compliant) Port
    • Yes
    • EPO Port
    • Yes
  • Battery Information
    • DC System Voltage
    • 192 V DC
    • Battery Characteristics
    • Hot-swappable
    • Battery Chemistry
    • Lead Acid
    • Typical Battery Recharge Time
    • 4 Hour
    • Replaceable Battery
    • Yes
  • Environmental Conditions
    • Maximum Operating Temperature
    • 40°C
    • Storage Temperature
    • -15°C - 45°C
    • Maximum Operating Elevation
    • 2.01 km
    • Maximum Storage Elevation
    • 15.24 km
    • Storage Relative Humidity
    • 0% - 95%
    • Sound Emission (A-Weighted)
    • 58 dB(A)
  • Physical Characteristics
    • Product Color
    • Black
    • Form Factor
    • Rack/Tower
    • Rack Height
    • 7U
    • Height
    • 306 mm
    • Width
    • 400 mm
    • Depth
    • 700 mm
    • Weight (Approximate)
    • 142.50 kg
  • Miscellaneous
    • Software Included
    • Powerchute
