- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Type
- PDU

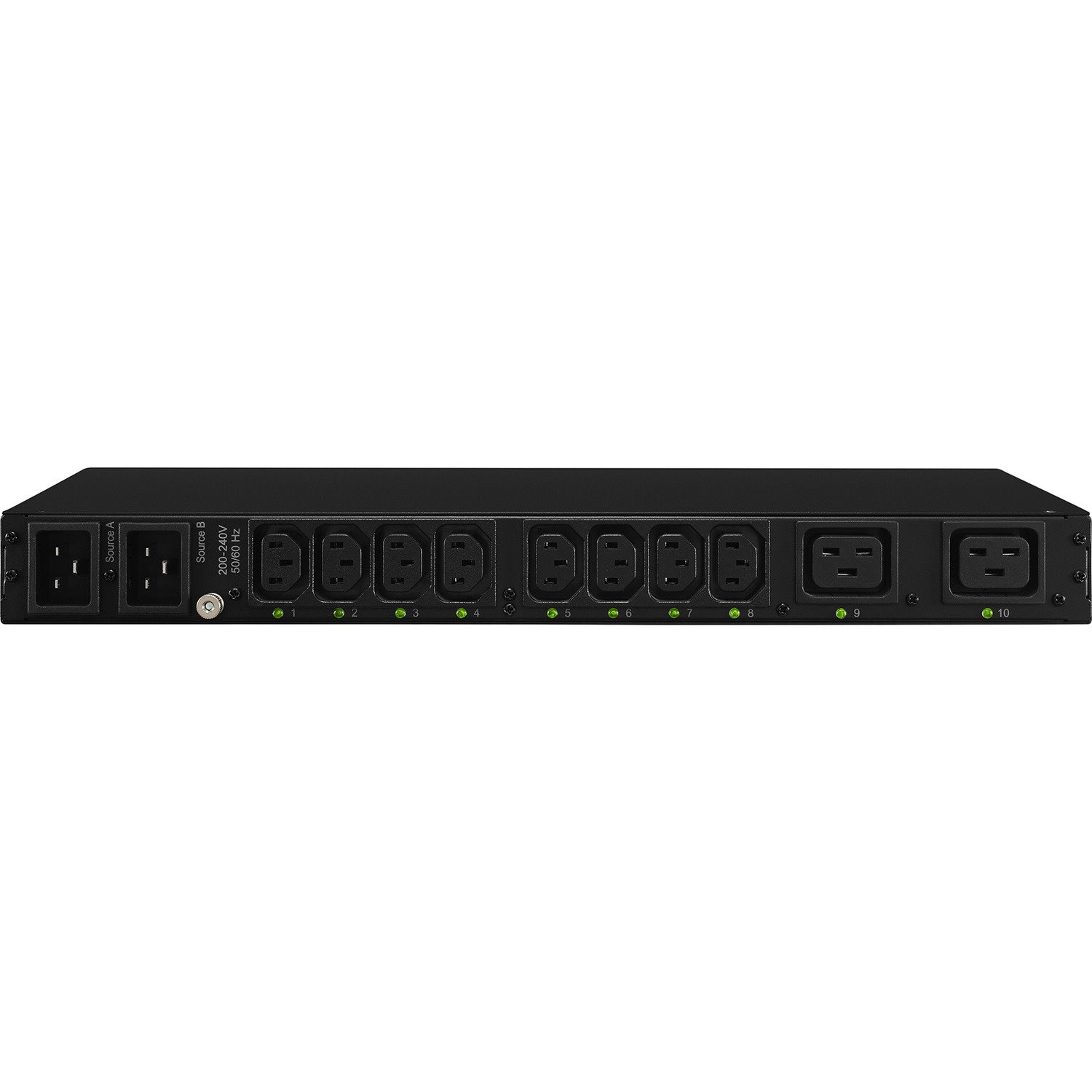

The CyberPower PDU20SWHVIEC10ATNET, 10-outlet 1U rack mount switched auto transfer switch (ATS) PDU, provides 200-240V/20A output. The PDU distributes power to 10 IEC 8-C13/2-C14 receptacles from redundant IEC-320 C20 plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.
The PDU includes a RMCARD203 SNMP card. With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the ATS PDU including event notifications.
The LCD provides local monitoring of voltage and amperage of the PDU and on/off control of the outlets.
The unit has a rugged, industrial-grade metal housing and 10-foot AC power cords. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
- Technical Information
- PDU Type
- Switched
- Power Description
- Output Voltage
- 230 V AC
- Input Current
- 20 A
- Management
- Management
- Automatic Transfer Switch (ATS)
- SNMP/HTTP
- Physical Characteristics
- Mount Type
- Rack-mountable
- Rack Height
- 1U
- Cord Length
- 3.05 m
- Height
- 44.5 mm
- Width
- 433.1 mm
- Depth
- 236.2 mm
- Weight (Approximate)
- 3.80 kg
- Miscellaneous
- Additional Information
- Phase: Single Phase
- Frequency: 50/60 Hz
- LCD Displays: Amperage, Voltage, KW, Network Information, and Hardware/LCD Firmware
- LED Indicators: Input, Output Load, Tx/Rx, LINK, Outlets
- Upgradeable Firmware: Yes - SNMP, HW, and LCD
