• General Information
• • Manufacturer
  • Eaton Corporation
  • Manufacturer Website Address
  • http://www.eaton.com
  • Brand Name
  • Eaton
  • Product Series
  • 93E MK2
  • Product Type
  • Double Conversion Online UPS

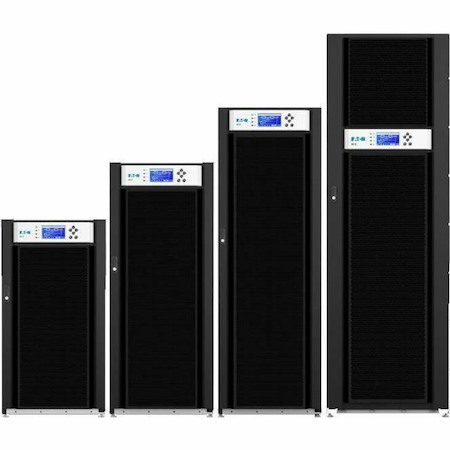

The Eaton® 93E MK2 UPS delivers superior power protection with the highest power and energy density in the industry.

The 93E MK2 range provide the lowest total cost of ownership in its class by combining extremely compact footprint, tremendous flexibility and unprecedented ease of installation. It also provides the suite of advance technologies of Eaton's UPS to achieve maximum availability for the critical loads.

The 93E MK2 is ideal for applications where long back up time is needed and space is a constrain.

Minimizing Total Cost of Ownership

The 93E MK2 is the clear choice if you're seeking to maximize your return on investment (ROI). Delivering the lowest TCO of any UPS in its class, the 93E MK2 offers a unique blend of energy, space and installation savings.

Extremely compact footprint

• Internal battery design with extended runtime design to save footprint, no extra battery cabinet needed.
• Pre-installed batteries to simplify setup and lower costs
• Internal maintenance bypass switch

Ease of installation

• Pre-installed battery modules to minimize installation costs and improve reliability
• Internal maintenance bypass switch (MBS) as standard to avoid additional installation cost

Flexible and scalable runtime

• Delivers up to almost 30 minutes of backup time for 40kVA in a single frame
• Increase back up time by adding more battery modules
• Provides greater runtime at lower costs

Maximum availability

Eaton 93E MK2 UPS has been designed to maximize availability at both the facility and IT layer. The 93E MK2 design and Eaton's patented technologies provide high level of resiliency while Eaton's Intelligent Power Software (IPM) allows enhanced monitoring and load shedding capabilities

True reliability

• Patented Eaton Hot Sync® paralleling technology eliminating single point of failure
• Active power factor correction (PFC) provides 0.99 input power factor and <5% ITHD
• Optimized for protecting modern 0.9 p.f. rated IT equipment
• Factory system tested solution for enhanced reliability

Minimize downtime

• Slide out battery trays for easy replacement Washable dust filters
• Easy Capacity Test allow the 93E MK2 to test its entire Power Train without the need of an external load bank.
