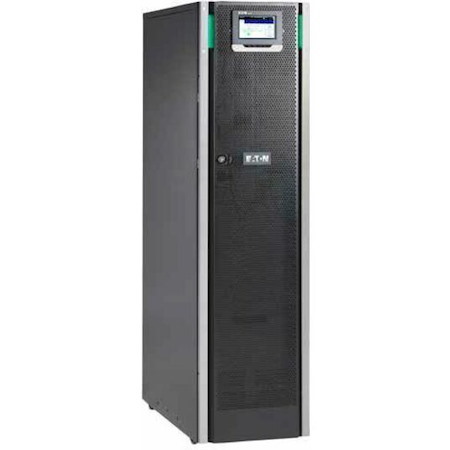

Eaton 93PS10N0 8kVA Tower UPS

  • Part: 1240637
$14,631.00

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Eaton Corporation
    • Manufacturer Website Address
    • http://www.eaton.com
    • Brand Name
    • Eaton
    • Product Series
    • 93PS
    • Product Type
    • Double Conversion Online UPS

Lowest Total Cost of Ownership (TCO)

  • Efficiency: Above 96% efficiency in double conversion mode - Up to 99% efficiency with Energy Saver System
  • Scalability:Scalable architecture and 'Pay as you grow' capability to minimise Capital Expenditure - Paralleling of up to 4 units
  • Inherent redundancy: Modular design allows internal redundancy (separate battery configuration also available)
  • Smallest footprint in the market: The 93PS provides significantly more in a smaller package, with a footprint of only 0.25 m² for the smaller frame (8-20 kW) and 0.36 m² for the large frame (8-40 kW)
  • Unity power factor (1.0)

Maximum Availability

  • Hot Swap and Hot Scalable: A module can be replaced while the other continues protecting the load (concurrent maintenance) - A module can be added while the other continues protecting the load (hot scalable) - Individual battery strings can be serviced while other strings are supporting the load
  • Super-sized static switch: Optional super-sized Static Switch to enhance the selectivity of the overall electrical installation
  • Safety : Equipped with an ultra-rapid fuse in the Static Switch - ensuring safety in all scenarios - Equipped with a backfeed contactor - no need for additional installments
  • Cloud & Virtualisation ready : The 93PS and Eaton's Intelligent Power Manager software suite takes the resiliency of the system to the next level by bridging the electrical and IT infrastructure - IT and electrical infrastructure management from a "Single pane of glass" - Load shedding - 50% drop in load equates to 250% more runtime!

  • Technical Information
    • Plug/Connector Type
    • 3PH + N
    • Receptacle Type
    • 3PH + N
    • Protection Type
    • Fuse
    • Backfeed
    • Phase
    • Three Phase
    • Application/Usage
    • Server Room
    • Data Center
    • Mission Critical Equipment
    • IT
    • Manufacturing Facility
    • Industrial
    • Transportation
    • Commercial
    • Healthcare
    • Telecommunication
    • Government
    • IT Infrastructure
    • Features
    • Built-in Bypass Switch
  • Power Description
    • Load Capacity (VA)
    • 8 kVA
    • Load Capacity (Watt)
    • 8 kW
    • Input Voltage
    • 230 V AC
    • 380 V AC
    • 400 V AC
    • 415 V AC
    • Input Voltage Range
    • 187 V AC - 276 V AC
    • Input Current
    • 13 A
    • Output Voltage
    • 220 V AC
    • 380 V AC
    • 230 V AC
    • 400 V AC
    • 240 V AC
    • 415 V AC
    • Input Frequency
    • 50 Hz
    • 60 Hz
    • Input Power Factor
    • 0.99
    • Output Power Factor
    • 1
  • Management
    • Network Management
    • SNMP/Web
  • Interfaces/Ports
    • Serial Port
    • Yes
    • USB
    • Yes
    • EPO Port
    • Yes
  • Physical Characteristics
    • Height
    • 1300 mm
    • Width
    • 335 mm
    • Depth
    • 750 mm
    • Form Factor
    • Tower
    • Weight (Approximate)
    • 73 kg
  • Miscellaneous
    • Certifications & Standards
      • IEC 62040-1
      • IEC 62040-2
      • IEC 62040-3
