- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com/nz/en/
- Brand Name
- Lenovo
- Product Line
- ThinkSystem
- Product Series
- SR635 V3
- Product Type
- Server

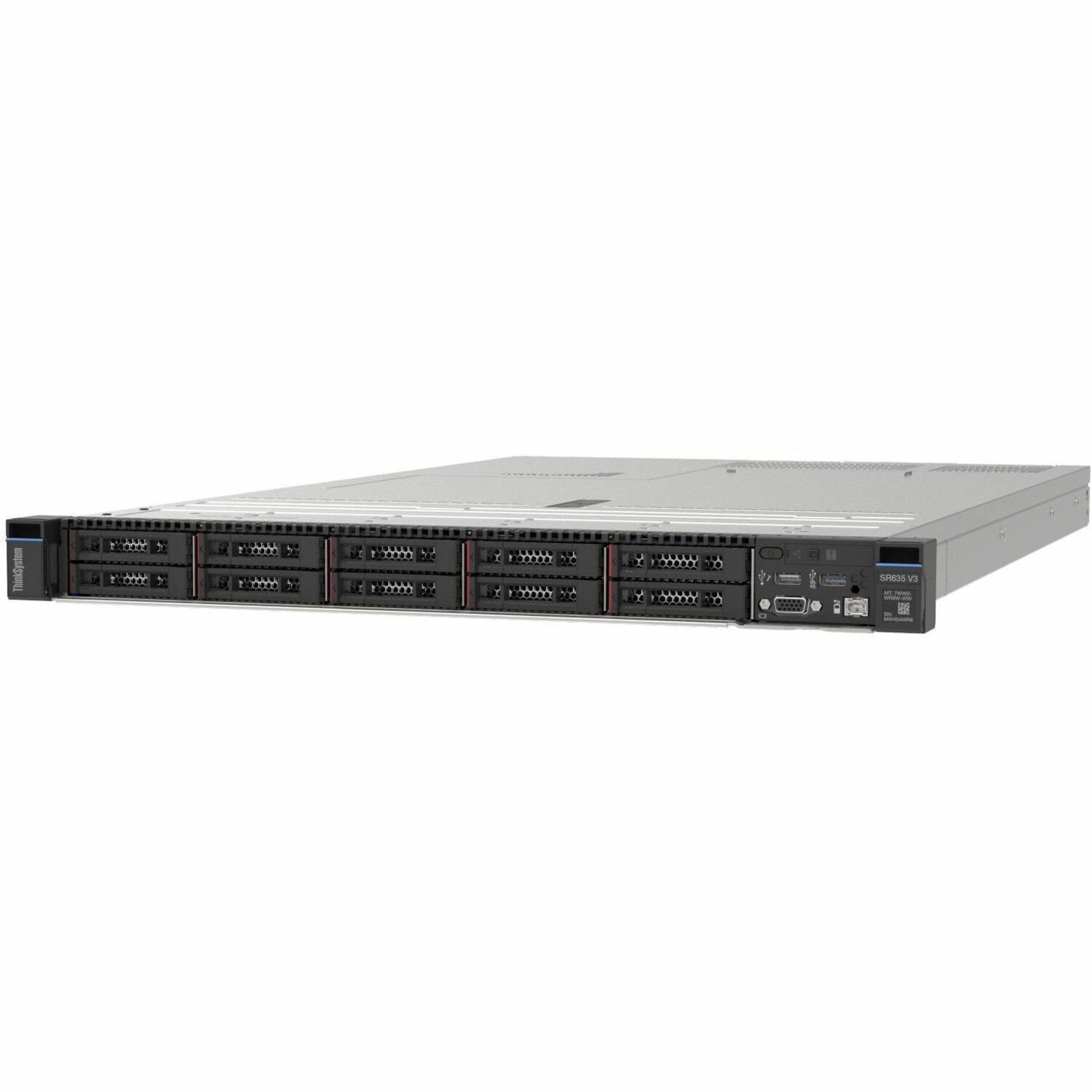

The Lenovo ThinkSystem SR635 V3 is a 1-socket 1U server that features the 5th Gen AMD EPYC 9005 Series "Turin" family of processors. With up to 160 processor cores and support for the PCIe Gen5 standard for I/O, the SR635 V3 offers the ultimate in one-socket server performance in a 1U form factor.
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
- Processor
- Number of Processors Supported
- 1
- Number of Processors Installed
- 1
- Processor Manufacturer
- AMD
- Processor Type
- EPYC
- Processor Generation
- 4th Gen
- Processor Model
- 9124
- Processor Core
- Hexadeca-core (16 Core)
- Processor Speed
- 3 GHz
- Cache
- 64 MB
- Chipset
- Chipset Manufacturer
- AMD
- Memory
- Standard Memory
- 32 GB
- Maximum Memory Supported
- 3 TB
- Memory Technology
- TruDDR5
- Memory Clock Speed
- 4.80 GHz
- Error Checking
- ECC
- Total Number of Memory Slots
- 12
- Number of Occupied Memory Slots
- 1
- Signal Processing
- Registered (Buffered)
- Controllers
- Controller Type
- 12Gb/s SAS
- Controller Model
- 9350-8i
- RAID Supported
- Yes
- I/O Expansions
- Number of Total Expansion Bays
- 8
- Number of Internal 2.5" Bays
- 8
- Number of SFF Bays
- 8
- Hot Swappable Bays
- Yes
- Total Number of Expansion Slots
- 5
- PCI Express Details
- LP+FH Gen4
- Display & Graphics
- Graphics Memory Capacity
- 16 MB
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Total Number of USB Ports
- 6
- Network (RJ-45)
- Yes
- VGA
- Yes
- Number of VGA Ports
- 2
- Remote Management
- Yes
- Remote Management Controller
- XClarity Standard Controller (XCC2)
- Operating System
- Operating System Supported
- Windows 10 x64
- Windows 11
- Windows Server 2019
- Windows Server 2022
- Windows Server 2025
- Red Hat Enterprise Linux 8.6
- Red Hat Enterprise Linux 8.7
- Red Hat Enterprise Linux 8.8
- Red Hat Enterprise Linux 8.9
- Red Hat Enterprise Linux 8.10
- Red Hat Enterprise Linux 9.0
- Red Hat Enterprise Linux 9.1
- Red Hat Enterprise Linux 9.2
- Red Hat Enterprise Linux 9.3
- Red Hat Enterprise Linux 9.4
- Red Hat Enterprise Linux 9.5
- Red Hat Enterprise Linux 9.6
- Red Hat Enterprise Linux 10
- SUSE Linux Enterprise Server 15 SP4
- SUSE Linux Enterprise Server 15 SP5
- SUSE Linux Enterprise Server 15 SP6
- Ubuntu 20.04 LTS x64
- Ubuntu 22.04 LTS x64
- Ubuntu 24.04 LTS x64
- SUSE Linux Enterprise Server 15 SP7
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 1
- Plug/Connector Type
- C14
- Maximum Power Supply Wattage
- 750 W
- Hot Swappable Power Supply
- Yes
- Power Source
- Power Supply
- Physical Characteristics
- Form Factor
- Rack
- Rack Height
- 1U
- Height
- 43 mm
- Width
- 440 mm
- Depth
- 773 mm
- Weight (Approximate)
- 20.20 kg
- Miscellaneous
- Package Contents
- ThinkSystem Sr635 V3 7D9GA00XAU Server
- Toolless Slide Rail Kit
- Cable Management Arm
- Security Features
- Chassis intrusion switch
- Power-on password
- administrator's password
- Root of Trust module supporting TPM 2.0
- Platform Firmware Resiliency (PFR).
- Energy Star
- Yes
- Environmentally Friendly
- Yes
- Environmental Certification
- Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)
- China Environmental Labeling Program (CELP)
- GREENGUARD
- Energy Efficiency Certification
- ENERGY STAR 4.0
- China Energy Conservation Program (CECP)
- Energy Efficiency Compliance
- Energy-related Products Directive Lot 9 (ErP Lot 9)
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
