- General Information
- Manufacturer
- Perle Systems, Inc
- Manufacturer Website Address
- http://www.perle.com
- Brand Name
- Perle
- Product Series
- IDS-509F
- Product Type
- Ethernet Switch

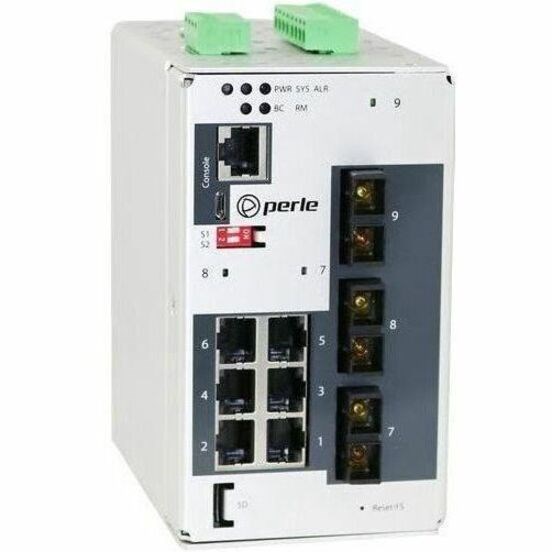

The IDS-509F is a9 port Managed Ethernet Switch that can operate in industrial environments providing advanced performance and enabling real-time deterministic network operation. Choose any combination of10/100/1000-Base-T Ethernet copper portsand100Base-X fiber ports to meet the needs of your environment.
In addition to extending links over greater distances, utilizing fiber is critical in industrial plants where high levels of electromagnetic interference or EMI is a common phenomenon. This interference can cause corruption of data over copper-based Ethernet links. Data transmitted over fiber optic cable however is completely immune to this type of noise ensuring optimal data transmission across the plant floor.
Perle Industrial-grade Ethernet Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications.
With over 78 models, the Perle IDS-509F offers a choice of connectors, fiber types, temperature support and operating distances.
Perle's Fast Setup feature provides simple Plug and Play installation to get your Ethernet devices networked immediately. The familiar Command Line Interface (CLI),via in-band Telnet or the out-band serial console port,will be appreciated by CCNA(Cisco Certified Network Associate) and CCNP(Cisco Certified Network Professional) trained engineers.
The PRO feature set in the IDS-509F is ideal for sophisticated environments where additional extensive security and network integration functionality is required.
- TACACS+ and RADIUS authentication, authorization and accounting (AAA) security services
- SSH, SNMPv3, Telnet and HTTPS secure management sessions
- IP address and IP Port number Management Access Lists(ACL)
- Password Strength Checking
- Protection of User Access Ports through IEEE 802.1x Authentication and Port Security
- Advanced protocols to optimize the performance and intelligence of the network: LLDP, GVRP, Voice VLANs, MSTP, GMRP, IPv4 IGMP Snooping and IPv6 MLD Snooping
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Features
- Plug and Play
- Fanless
- IP40
- Interfaces/Ports
- Total Number of Network Ports
- 9
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 6 x 10/100/1000Base-T Gigabit Ethernet RJ-45 Network Port
- 2 x 100Base-LX Duplex SC Connector
- 1 x 100Base-LX Duplex SC Connector
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Fiber Optic Cable Wavelength
- 1310 nm
- Ethernet Technology
- Gigabit Ethernet
- Fast Ethernet
- Network Technology
- 10/100/1000Base-T
- 100Base-LX
- Maximum Data Transfer Rate
- 128 MB/s
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.1Q
- IEEE 802.1p
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.1ab
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- Management & Protocols
- Manageable
- Yes
- Reliability
- MTBF
- 101750 Hour
- Power Description
- Input Voltage
- 12 V DC
- 24 V DC
- 48 V DC
- 9.6 V DC
- 6 V DC
- 24 V AC
- Power Source
- AC/DC
- Power Supply
- Redundant Power Supply Supported
- Yes
- Plug/Connector Type
- Terminal Block
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- Rail-mountable
- Panel-mountable
- Wall Mountable
- Compact
- Height
- 122.9 mm
- Width
- 130 mm
- Depth
- 74.9 mm
- Weight (Approximate)
- 640 g
- Miscellaneous
- Package Contents
- IDS-509F3-C2SD20-SD40 - Industrial Managed Ethernet Switch
- Terminal block
- Installation guide
- DIN Rail attachment
- Application/Usage
- Industrial
- Network
- Government
- Outdoor
- Security
- Server
- Automation Industry
- Certifications & Standards
Safety
- UL/EN/IEC 62368-1
- CAN/CSA C22.2 No. 62368-1
- UL 60950-1
- IEC 60950-1:2005+A1:2009 and
- EN 60950-1:2006+A11:2009+A1:2010+A12:2011
- CE Mark
- UL 61010-1 and UL 61010-2-201 (Standard for Safety for Programmable Controllers). Formerly known as UL508
Emissions
- FCC 47 Part 15 Class A
- CISPR 22:2008/EN55022:2010 (Class A)
- CISPR 24:2010/EN 55024:2010
EMC and Immunity
- CISPR 24:2010/EN 55024:2010
- IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 4kv, Air discharge +/- 8kv
- IEC/EN 61000-4-3 (RS) : 80mhz to 16hz ; 20v/m, 1.5hkz to 2.0ghz ; 10 v/m, 2.0ghz to 2.7 ghz ; 5 v/m
- IEC/EN 61000-4-4 (EFT) : DC power line +/- 2kv, data line +/- 1kv
- IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kv, Line/Earth +/- 2kv, data line /earth +/- 2kv
- IEC/EN 61000-4-6 (CS) :150mhz-80mhz 10vrms
- IEC/EN 61000-4-8 (Magnetic Field) :30 A/M
- IEC/EN 61000-6-2 (General Immunity in Industrial Environments)
Hazardous Locations (Hazloc)
- ANSI/ISA 12.12.01, Class 1 Division 2 Groups A-D (formerly known as UL 1604)
- ATEX Class 1 Zone 2
Other
- ECCN: 5A992
- HTSUS Number: 8517.62.0020
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
