- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Marketing Information

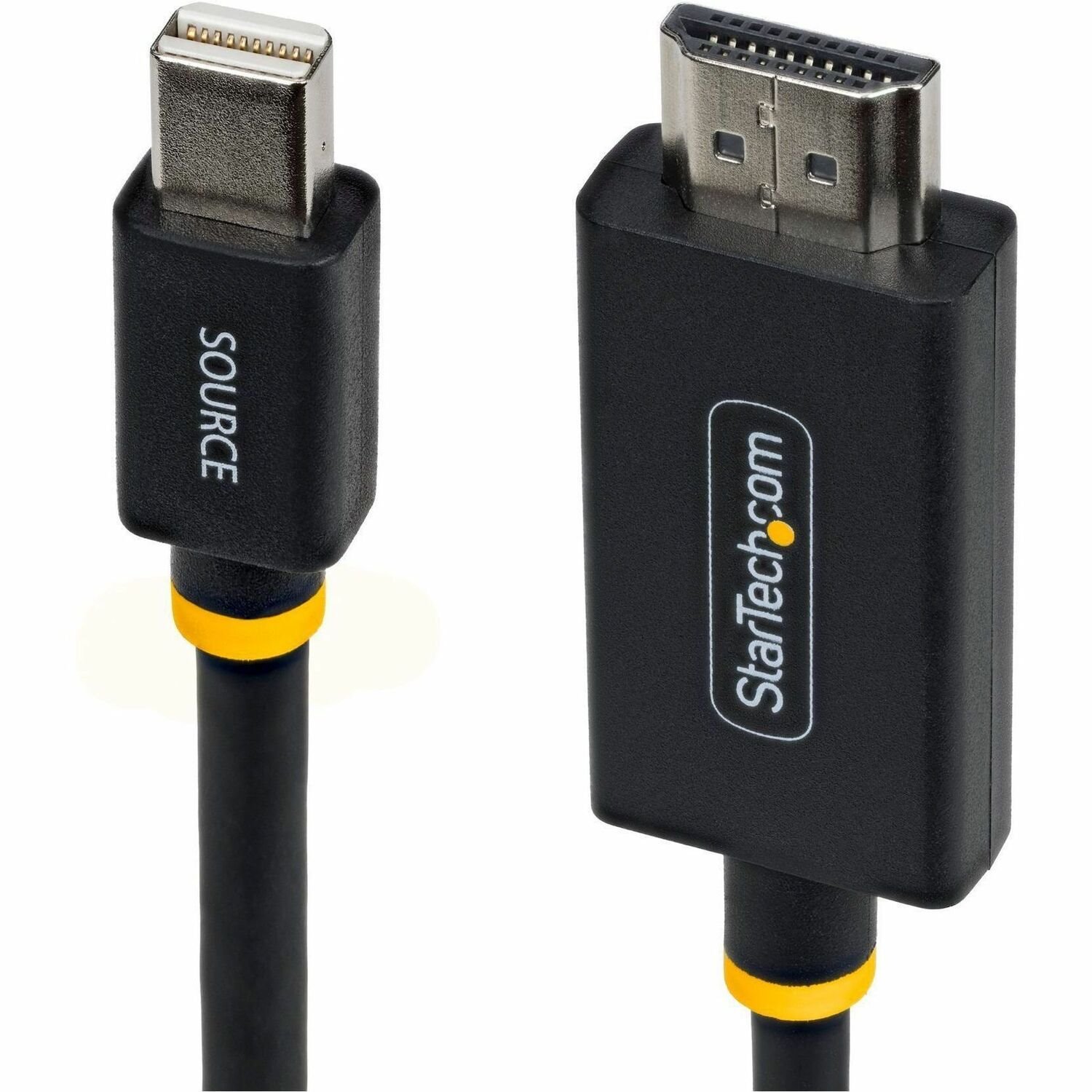

Connect a Mini DisplayPort-enabled desktop to an HDMI UHD monitor, using this 2-meter (6.6-foot) Active Mini DisplayPort to HDMI Adapter Cable.
Seamless 4K 60Hz UHD Video
This active Mini DisplayPort to HDMI adapter cable supports up to 4K 60Hz UHD over HDMI 2.0 with 7.1ch audio, HDCP 2.3 and DPCP content protection. Ensure sharp picture quality with 32Gbps HBR3 bandwidth from the Mini DisplayPort input, delivering full 18Gbps HDMI 2.0 output for consistent UHD video performance.
Universal Compatibility
The mDP To HDMI adapter cord is ideal for workstations and GPUs equipped with a Mini DisplayPort 1.2, 1.4, or 2.1 video ports and HDMI 2.0 displays. An active chipset ensures optimal signaling and universal compatibility across standard mDP and mDP++ ports. Connect a Mini DisplayPort 1.2 source to enable HDMI 2.0 4K 60Hz 4:4:4 chroma, 8-bit color depth output.
Designed and Built for IT Professionals
The integrated adapter cable design minimizes signal loss, reduces clutter, and eliminates the need for external power. This Mini DisplayPort to HDMI cable helps maintain signal integrity and reduce electromagnetic interference (EMI) for reliable long-term performance. Compatible with systems from Dell, HP, Lenovo, and other desktop manufacturers, and backward compatible with 4K 30Hz, 1080p, and lower resolutions.
- Packaged Quantity
- 1
- Product Type
- A/V Cable
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Cable Type
- HDMI/Mini DisplayPort
- Cable Length
- 2 m
- Outer Diameter
- 5 mm
- Connector Type on First End
- Mini DisplayPort 1.4 Digital Audio/Video
- Connector Gender on First End
- Male
- Connector on First End Details
- 1x Mini Displayport 1.4 Digital Audio/Video - Male
- Connector Type on Second End
- HDMI 2.0 Digital Audio/Video
- Connector Gender on Second End
- Male
- Connector on Second End Details
- 1x HDMI 2.0 Digital Audio/Video - Male
- Connector Plating
- Gold
- Device Supported
- Audio/Video Device
- Monitor
- Video Converter
- Workstation
- External GPU
- Display
- Digital Signage
- Data Transfer Rate
- 32 Gbit/s
- Supported Resolution
- 3840 x 2160
- 2560 x 1440
- 2048 x 1536
- 1920 x 1200
- 1920 x 1080
- 3200 x 1800
- 3072 x 1728
- HDMI Version
2.0
- Features
- High Bit Rate 3 (HBR3)
- HDCP 2.3
- DPCP
- 4K UHD
- Active
- EMI Protection
- Plug & Play
- Durable
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Product Material
- ABS
- Jacket Material
- Thermoplastic Elastomer (TPE)
- Height
- 10.2 mm
- Width
- 20.3 mm
- Weight (Approximate)
- 45.4 g
- Miscellaneous
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
