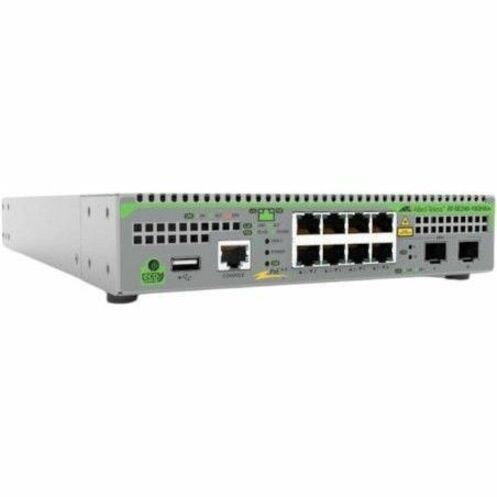

Allied Telesis CentreCOM SE240 Series Layer 2+ multi-gigabit switches are compact and feature-rich, making them ideal for high-speed application connectivity at the network edge.
Overview
Allied Telesis CentreCOM SE240 Series switches provide flexible edge connectivity with 10M/100M/1/2.5/5G speeds supporting both legacy and high-speed end devices, as well as performance upgrades over existing Cat5e building cables. Power over Ethernet (PoE++) models enable connecting and powering nextgeneration wireless access points, video surveillance cameras and more with up to 90W power delivery. With 8, 16, or 24 multi-gigabit ports and 10 gigabit SFP+ uplinks, the SE240 Series meets modern network edge demands.
- General Information
- Manufacturer
- Allied Telesis, Inc
- Manufacturer Website Address
- http://www.alliedtelesis.com
- Brand Name
- Allied Telesis
- Product Line
- CentreCOM
- Product Series
- SE240
- Product Type
- Ethernet Switch
- Technical Information
- Features
- Energy Efficient
- Loop Protection
- Dynamic ACL
- Active Fiber Monitoring (AFM)
- DHCP Snooping
- Access Control List
- Interfaces/Ports
- Total Number of Network Ports
- 8
- Uplink Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x 1/2.5/5Base-T Gigabit Ethernet PoE++ RJ-45 Network Port
- 2 x 1/10 Gigabit Ethernet SFP+ Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Fast Ethernet
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 5 Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 100/1000Base-T
- 2.5GBase-T
- 5GBase-T
- 1000Base-X
- 10GBase-X
- Maximum Data Transfer Rate
- 1.25 GB/s
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 2
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.1x
- IEEE 802.2
- IEEE 802.3
- IEEE 802.3ab
- IEEE 802.3ae
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3az
- IEEE 802.3bt
- IEEE 802.3bz
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3z
- IEEE 802.1ab
- IEEE 802.1p
- IEEE 802.1AX
- IEEE 802.1D
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.3ad
- IEEE 802.1Q
- IEEE 802.1v
- IEEE 802.3ac
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 240 W
- Power Source
- PoE++
- Power Consumption
- 44 W
- Physical Characteristics
- Form Factor
- Compact
- Height
- 42.4 mm
- Width
- 210.1 mm
- Depth
- 345.9 mm
- Weight (Approximate)
- 2.70 kg
- Miscellaneous
- Application/Usage
- Network
- Wireless Access Point
- Video Surveillance
- Camera
- Certifications & Standards
Electrical Approvals and Compliances
EMC:
- EN55032 class A
- FCC class A
- VCCI class A
- ICES-003 class A
Immunity:
- EN55035
- EN61000-3-levels 2 (Harmonics), and 3 (Flicker) AC models only
Safety
Standards:
- UL62368-1
- CAN/CSA-C22.2 No.62368-1
- EN62368-1
- EN60825-1
- AS/ NZS62368.1
Certification:
- UL
- cUL
Standards and Protocols
Cryptographic Algorithms
FIPS Approved Algorithms
Encryption (Block Ciphers):
- AES (ECB, CBC, CFB and OFB Modes)
- 3DES (ECB, CBC, CFB and OFB Modes)
Block Cipher Modes:
- CCM
- CMAC
- GCM
- XTS
Digital Signatures & Asymmetric Key Generation:
- DSA
- ECDSA
- RSA
Secure Hashing:
- SHA 1
- SHA-2 (SHA-224, SHA-256, SHA-384. SHA-512)
Message Authentication:
- HMAC (SHA-1, SHA-2(224, 256, 384, 512)
- Random Number Generation:
- DRBG (Hash, HMAC and Counter)
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- China Restriction of Hazardous Substances (China RoHS)
