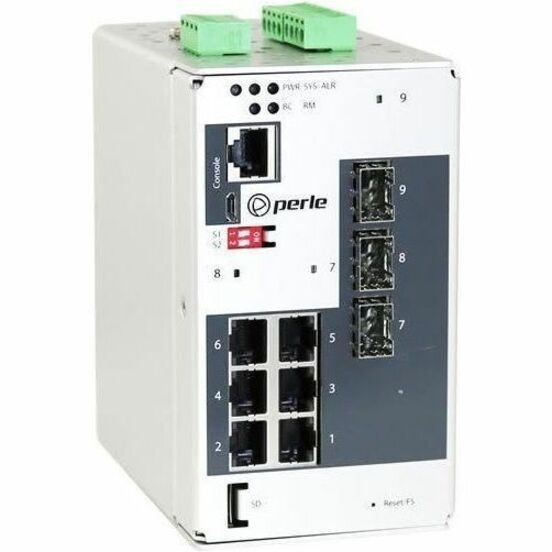

The IDS-509-SFP is a 9 port Managed Ethernet Switch that can operate in industrial environments providing advanced performance and enabling real-time deterministic network operation. Choose any combination of 10/100/1000-Base-T Ethernet copper ports and 100/1000Base-X SFP fiber ports to meet the needs of your environment.
- 8 copper, 1 SFP fiber
- 6 copper, 3 SFP fiber
- 4 copper, 5 SFP fiber
The SFP slots allow for flexible network configurations using SFP transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs. In addition, they make utilizing fiber is easy in environments where high levels of electromagnetic interference (EMI) is a common phenomenon, like industrial plants. This interference can cause data corruption over copper-based Ethernet links. However, data transmitted over fiber optic cable is completely immune to this type of noise ensuring optimal data transmission across the plant floor.
Perle Industrial-grade Ethernet Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications.
Simple Plug and Play installation to get your Ethernet devices networked immediately is available with Perle's Fast Setup feature. CCNA (Cisco Certified Network Associate) and CCNP (Cisco Certified Network Professional) trained engineers will appreciate the familiar Command Line Interface (CLI) via in-band Telnet or the out-band serial console port.
The PRO feature set in the IDS-509-SFP is ideal for advanced environments where additional extensive security and network integration functionality is required.
- AAA ( Authentication, Authorization, Accounting)security protocols: RADIUS and TACACS+
- SSH, SNMPv3, Telnet and HTTPS secure management sessions
- Management Access Lists (ACL) by IP address and IP Port number
- Enforce Password Strength requirements
- IEEE 802.1x Authentication and Port Security for protection of user access ports
- Optimize the performance and intelligence of the network with Advanced Protocols: LLDP, GVRP, Voice VLANs, MSTP, GMRP, IPv4 IGMP Snooping and IPv6 MLD Snooping
The IDS-509-SFP supports a comprehensive set of management functions, such as MRP (IEC62439-2) , PROFINET, Modbus TCP, management VLAN, QoS, RMON, N:1 port mirroring and local alert log. In addition, the switch can be managed with an IPv6 address.
- General Information
- Manufacturer
- Perle Systems, Inc
- Manufacturer Website Address
- http://www.perle.com
- Brand Name
- Perle
- Product Series
- IDS-509-SFP
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Features
- IP20
- Remote Monitoring (RMON)
- Plug and Play
- Broadcast Storm Control
- Fanless
- Surge Protection
- Alarm Relay
- DHCP Relay
- DHCP Client Auto-Configuration
- Congestion Avoidance
- Interfaces/Ports
- Total Number of Network Ports
- 6
- Modular
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 6 x Gigabit Ethernet Network
- 3 x Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 100/1000Base-X
- I/O Expansions
- Total Number of Expansion Slots
- 3
- Expansion Slot Type
- SFP (mini-GBIC)
- Number of SFP Slots
- 3
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1Q
- IEEE 802.1p
- IEEE 802.3ad
- IEEE 802.1ab
- Management & Protocols
- Manageable
- Yes
- Reliability
- MTBF
- 114913 Hour
- Power Description
- Input Voltage
- 12 V DC
- 24 V DC
- 48 V DC
- 24 V AC
- Power Source
- Power Supply
- AC/DC
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 14.70 W
- Plug/Connector Type
- Terminal Block
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- DIN Rail Mountable
- Compact
- Wall Mountable
- Panel-mountable
- Height
- 123 mm
- Width
- 130 mm
- Depth
- 75 mm
- Weight (Approximate)
- 640 g
- Miscellaneous
- Package Contents
- IDS-509-3SFP - Industrial Managed Ethernet Switch
- DIN Rail Attachment
- Terminal Block
- Installation Guide
- Application/Usage
- Network
- Enterprise
- Server
- Automation Industry
- Government
- Outdoor
- Industrial
- Certifications & Standards
Safety
- UL/EN/IEC 62368-1
- CAN/CSA C22.2 No. 62368-1
- UL 60950-1
- IEC 60950-1:2005+A1:2009 and
- EN 60950-1:2006+A11:2009+A1:2010+A12:2011
- CE Mark
- UL 61010-1 and UL 61010-2-201 (Standard for Safety for Programmable Controllers). Formerly known as UL508
Emissions
- FCC 47 Part 15 Class A
- CISPR 22:2008/EN55022:2010 (Class A)
- CISPR 24:2010/EN 55024:2010
EMC and Immunity
- CISPR 24:2010/EN 55024:2010
- IEC/EN 61000-4-2 (ESD) : Contact discharge +/- 4kv, Air discharge +/- 8kv
- IEC/EN 61000-4-3 (RS) : 80mhz to 16hz ; 20v/m, 1.5hkz to 2.0ghz ; 10 v/m, 2.0ghz to 2.7 ghz ; 5 v/m
- IEC/EN 61000-4-4 (EFT) : DC power line +/- 2kv, data line +/- 1kv
- IEC/EN 61000-4-5 (Surge) : DC power line, Line/Line +/- 1kv, Line/Earth +/- 2kv, data line /earth +/- 2kv
- IEC/EN 61000-4-6 (CS) :150mhz-80mhz 10vrms
- IEC/EN 61000-4-8 (Magnetic Field) :30 A/M
- IEC/EN 61000-6-2 (General Immunity in Industrial Environments)
Hazardous Locations (Hazloc)
- ANSI/ISA 12.12.01, Class 1 Division 2 Groups A-D (formerly known as UL 1604)
- ATEX Class 1 Zone 2
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
